DT Photon

Precision Lighting for Cultural Heritage

The DT Photon series is the only lighting designed specifically for Cultural Heritage imaging and color reproduction. They provide preservation-grade spectrally accurate color reproduction, conservation-friendly UV-filtration and operating temperature, and industrial-grade build quality and longevity.

Both the 19″ DT Photon and 36″ DT Photon XL can be used for standard photographic lighting and used with any copy stand. The DT Atom was specialized designed to hold two 19″ DT Photon units, without the need for floor stands or ceiling mounts.

The DT Photon can also be placed under an object such as photographic film or a watermarked manuscript in order to provide transillumination. It fits in the interior cavity of the DT Atom or placed on the tabletop of any copy stand and used as the object-bearing surface; the top surface runs at 92 degrees Fahrenheit (33C), the same as a human hand.

Made in the USA.

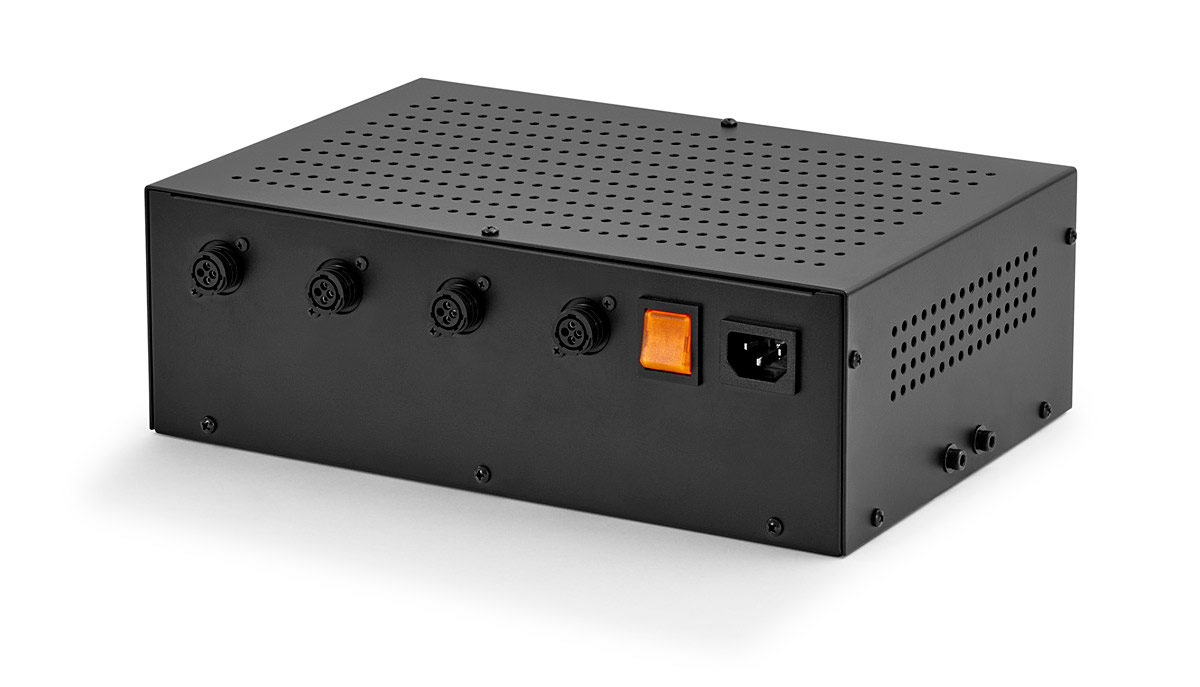

DT Photon Control Box

DT Photon and Photon XL Specs

  • Color Rendering Index (CRI): 98
  • Color Rendering Index (CRI-14): 98
  • Color Quality Score (CQS): 98
  • Spectral Flatness: Excellent
  • Color Temperature: 5500 Kelvin
  • Color Profile: Included in Capture One CH
  • Warm Up Time < 2 minutes
  • Includes mounting brackets
  • UL Certified & CE Certified
  • Made in the USA
  • Power Specifications:
    • Voltage: 100-250 V AC
    • Frequency: 45-65 Hz
    • Input: Max 8 A @ 115 V or 4 A @ 230 V
    • Output / channel: 5 A @ 24 V DC
    • Watts: 480 W Max

Illumination Amount

Reflective:
Two DT Photon XL, 15 feet to subject = ISO100, 1.0 sec @ f/8 (illuminating 144″ x 216″ area)
One DT Photon XL, 6 feet to subject = ISO100, 1/5 sec @ f/8 (illuminating 48″ x 72″ area)
Two DT Photon XL, 5 feet to subject = ISO 100, 1/8 sec @ f/8 (illuminating 48″ x 72″ area)
Transmissive:
DT Photon: ISO 100, 1/60th, f/8

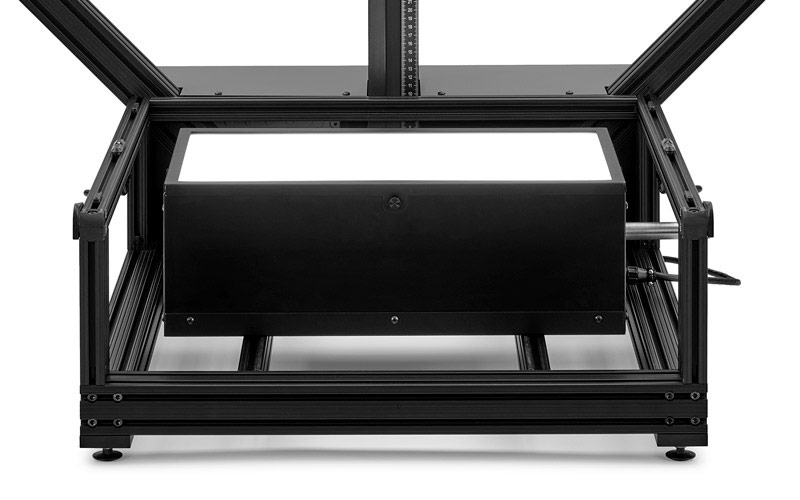

DT Photon utilized as a transmissive light box in the DT Atom

DT Photon utilized as a transmissive light box in the DT Atom, zoomed out view with glass film carrier featured.

DT Photon’s in default state on the DT Atom

Optimized for Capture One CH

The smooth spectrum of the DT Photon is precisely mapped in the calibrated color profiles found in Capture One CH.
Learn More about Capture One CH.
