DT RCam

Multispectra Edition


The DT Multispectra functions as an extension of the DT RCam using the same software, workflows, and accessories, meaning that institutions do not have to invest in a single-purpose solution to include multispectral imaging in their toolkit. Every object being imaged can be captured in up to three spectral bands (e.g. visible-only, IR, UV).

Scroll down to learn more or jump to a section:

Overview & Examples   Features & Specs   Product Images   Videos   Request more info

The Importance of Multispectral Imaging

The Digital Transitions Division of Cultural Heritage is dedicated to providing tools that combine a high rate of capture with preserving image quality that exceeds FADGI 4-star and Strict METAMORFOZE guidelines while maintaining conservation handling of the material. While today’s imaging guidelines do not provide any requirement to include capture outside of the visible spectrum we feel it is an important consideration for many cultural heritage applications.



Unseen Light

Because infrared light is not visible to the human eye it is impossible to know, simply by looking with your eyes, whether or not an infrared capture of an object will provide any additional information or context about that object. Including infrared capture in the digitization of an object is the only way to examine the object in this spectrum.
This can be especially important for objects which can be categorically said to have important infrared components. One example of this is a document in which writing or content has been obscured by singeing or burning; in such documents infrared capture can provide a clear image of the original content even in cases where the original content is completely obscured in the visual spectrum. It can also be important in instances such as counterfeit identification (even a facsimile which is visually perfect can show differences in the infrared spectrum), and botanical imaging where UV and IR can show patterns and decorative elements not visible to the naked eye.

Examples

The DT Multispectra – a Breakthrough Solution

The DT Multispectra combines preservation grade image quality, rapid capture, and multispectral imaging in a revolutionary way. Preservation grade image quality is provided using a 40mp, 60mp, or 80mp medium format sensor with high-quality large-format Schneider optics. Rapid capture is possible in sustained workflows exceeding 20 objects per minute, with each object being imaged in up to three spectral bands (e.g. visible-only, IR, UV).
The traditional focus-shift issue of non-visible imaging is elegantly accounted for by means of adjustable focus locks, and the hassle of changing filters is replaced by a rapid Filter Turret which can switch between up to three filters in addition to an optional supplemental master filter. Most importantly the DT Multispectra functions as an extension of the DT RCam, using the same software, workflows, and accessories, meaning that institutions do not have to invest in a single-purpose solution to include multispectral imaging in their toolkit.

Features & Benefits

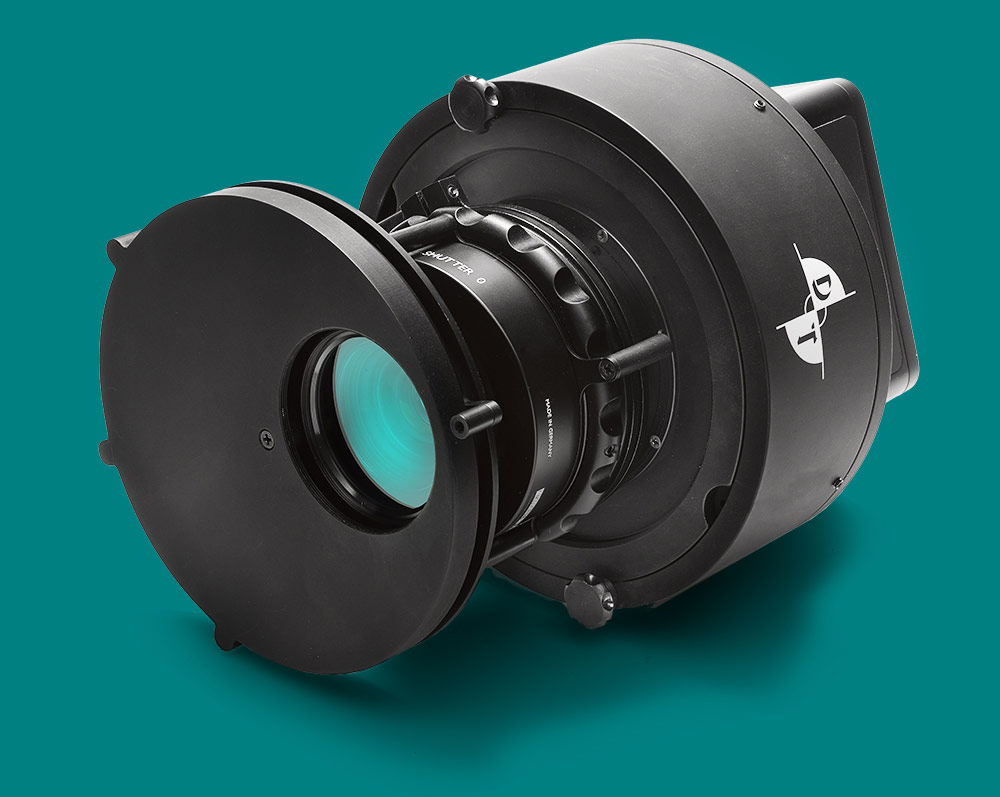

  • Over 200 times faster than existing scanning equipmentTURRET_PRODUCT_SHOTS1287
  • The highest image quality available
  • Capture in three spectral bands (e.g. visible-only, IR, UV)
  • Rapid capture in sustained workflows exceeding up to 20 objects per minute
  • Adjustable focus locks
  • Hassle of changing filters is replaced by a rapid Filter Turret
  • Compatible with DT RGC180 Capture Cradle and DT RG3040 Reprographic System
  • Easy to operate
  • Extremely durable for years of continuous use
  • Ensures preservation object handling

Note: System requires DT RCam and Reprographic Bench like the RG3040 or RGC180.

RCam Specifications

Materials: Aircraft grade aluminum with a black anodized finish
Camera: Focusing mount with 20mm of travel DT Rcam
Body: 6″ Diameter 6.25″ across at the lens board knobs 3.05″ High
Weight: 4 lbs 15.5 oz
Accessories

  • Extension tubes for close-up photography
  • Digital Back Adapters
  • Tripod Collar (to adapt DT RCam to studio tripod)

MADE IN AMERICA

We make all of our copy stands & cameras
here in the USA out of the strongest and
lightest Aircraft grade aluminum.

americafyeah

PRODUCT IMAGES

VIDEOS

Click below to download our full catalog.



Click below for the full DTDCH Overview.

Learn more or schedule a demo with the DT RCam Multispectra Reprographic Camera
