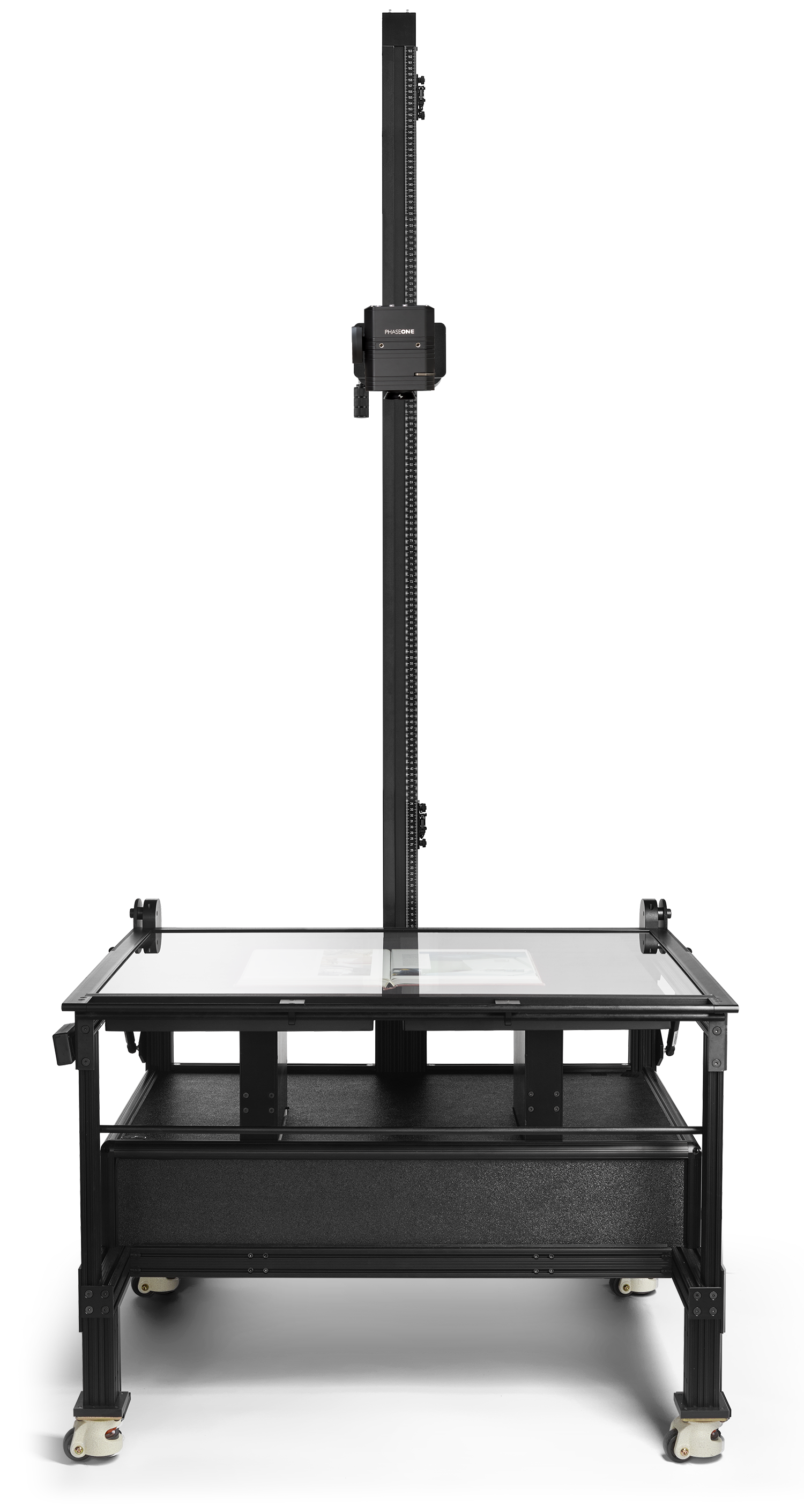

DT VERSA

More Than a Copy Stand

The DT Versa is a complete digitization platform. The stand, camera, and column seamlessly integrate with our software for fast and easy preservation-grade digitization. The Versa allows digitization with or without glass contact.

Conservation-Friendly

With the Versa hard top in place, all scanning is done 100% contact-free. Removing that hard top reveals a conservation-friendly glass top with a user-settable maximum and with such precise control of the object that the operator can raise the object to lightly kiss the glass.

Scan Anything

Nearly anything can be scanned with the DT Versa. Bound materials are its raison d’être, but it’s equally at home scanning manuscripts, flat artwork, maps, translucent materials such as film or glass plate negatives, as well as specimens.

Standards Compliant

Our DT Versa complies with FADGI 4-star, Metamorfoze Strict, ISO 19264 image quality, and JHOVE file format standards. The Library of Congress, The National Archives, and Getty along with these institutions use our systems.

Open Platform

While our camera and software offer simplicity, quality, and throughput, the Versa accepts any camera. You can purchase a Versa on one budget cycle and our camera on the next, or upgrade the camera anytime.

Solid, Precise, and Perfectly Aligned

The bench is made in the USA to 0.005” tolerances from aerospace grade aluminum. The DT AutoColumn precisely positions the camera within two-hundredths of an inch. And the Phase One iXG focus movement is measured in microns for meticulous accuracy.

Help at Every Step

We treat our valued customers as partners, and our highly trained staff are ready to meet your individual institution’s needs. Every system includes on-site training, a warranty that doesn’t require a service contract, and unlimited support. If you’re starting or revamping a digitization program, see our program planning guide and reach out; we’re glad to help!

Image Quality  •  Object Safety  •  Productivity

Bench

Solid, precise, laser aligned
Made in USA
3-Year warranty

Column

Smooth, precise movement
Droop-free camera arm
Anti-vibration pendulum

Camera

iXG: complete integration
RCam: ultimate flexibility
Or bring your own camera

Software

AutoCrop & Deskew
AutoPPI column integration
Fast and modern interface

Customization  &  Accessories

Customization

Custom Table Surface
Custom Column Height
Column Wall Mount

Lighting

DT Photon XL LED
Profoto Strobes
Broncolor Strobes

Material Handling

Book Wedge
Book Cradle
Film Scanning Kit
Vacuum Board

Standards Verification

Golden Thread Software
ISA Reflective Targets
ISA Film Scanning Targets

Specifications & Features

Don’t see a specification you need? Contact us.

BENCH

Materials: Black-anodized aerospace-grade aluminum

Glass Mode: Two 16½”  x 27½” platforms with independent pressure-controlled lift with up to 4″ gutter gap.

Glass-Free Mode: Removable 40″ x 30″ laminated copyboard

Foot Print: 40.4″ by 42.0″

Work deck height:  30″

Height: 102.4″(customizable)

Feet: 4 vibration-dampening casters for leveling system and portability

COMPRESSOR

Type: 0.5 HP, 6.3 gal tank

Power: 115V / 50-60Hz.  220V compressor also available.

Noise: Intermediately 60dB. Otherwise none.

Notes: House air can be used in lieu of compressor.

SOFTWARE

Name: Capture One Cultural Heritage Edition (aka Capture One CH)

Features: AutoCrop and AutoDeskew, Film Negative inversion, multiple derivative output

READ MORE

COLUMN

Camera Mount: Arca dovetail

Operation: From Capture One CH using USB or manually using remote

AutoPPI Mode: Using Capture One CH you can set the camera height by entering the desired capture PPI

Movement: 0.01″ precision using Capture One CH. Fast/slow modes.

Mounting: Integrated into DT Versa or Wall-Mounted

Stability: antivibration pendulum included; wall-anchor optional

Power: 110/220 volt autoswitching. Accepts any standard “computer power” plug for easy international use.

READ MORE

CAMERA: iXG

Resolution: 50mp or 100mp

PPI: See PPI Explanation

Focusing: Linear-motor for no-slip high-precision focusing while pointed downward. Manual or automatic focusing via Capture One CH.

Shutter: Precision electronically controlled shutter with max speed of 1/250th and 1 million capture warranty.

Mount: Integrated L-Bracket with 3/8th threads and dovetail

Weight: 5 lbs w/ 72mm lens

Size: 5.9″ x 4.7″ x 3.9″ at infinity

READ MORE

CAMERA: DT RCam

Resolution: 40, 50, 60, 80, or 100mp

PPI: See PPI Explanation

Focusing: No-slip precision helical with 20mm of travel and optional lock.

Shutter: Precision electronically controlled shutter with max speed of 1/250th and 1 million capture warranty.

Mount: Integrated L-Bracket with 3/8th threads and dovetail

Weight: 4 lbs 15 oz (body only)

Size: 6″ diameter, 3.05″ depth

Lenses: Schneider 72mm Digitar & Schneider 120mm APO Digitar.

READ MORE
