Solutions for Medical, Scientific, and Custom
DTDCH designs and manufactures its own camera bodies, lens panels, reprographic copystands, and accessories in the United States. Our diverse expertise in the areas of optical, mechanical, and software design provide us a virtually unlimited capacity to custom design solutions to meet specific needs.
We’ve worked with a wide variety of entities to develop practical custom solutions to unique challenges. We have had great success designing solutions for industrial imaging, medical imaging, forensic, and other unusual applications. Our hardware is well suited to such precision industrial imaging applications where tight tolerances, modularity, consistent repeatability, and extreme durability are essential. Below are just a few examples of custom solutions we’ve provided.
Image Courtesy of SITU Research
High Magnification Macro
Our development team has extensive expertise in creating high-magnification imaging solutions. Here we developed a precision positioning table that provided micron-accurate subject movement enabling a 300-shot stitch to document the physical features of the head of a dead housefly.
Specimen Slide Imaging
We worked with the Laboratory of Cognitive Neurobiology at the Boston University School of Medicine to develop a rapid capture system to image their specimen slides containing cross sections of monkey brain. Their previous system required 30 minutes per slide and was difficult to keep in calibration. Our solution provided increased resolution and can capture several slides per minute.
DTDCH systems are in use at several government agencies (none of which we are allowed to name) for various forensic applications. We can custom build solutions which include UV and IR sensitivity, high magnification, and extreme repeatability. Featuring resolution up to 80 megapixels (480mb 16-bit TIFF) in one capture and limitless resolution when stitching, our systems can be used in a wide range of forensic applications.
Our DT MultiSpectra is being used by Dr. Saman Aryana, Assistant Professor of Chemical and Petroleum Engineering at University of Wyoming.
“We use the DT Multispectra to collect images of microfluidic chips to determine distribution of various fluids inside the model at any given point in time. The chips are quasi 2d representations of hydrocarbon bearing formations such as sandstone. The setup allows visualization of the entire aerial extent of the chip in one shot, and the resolution enables the user to discern small features (as small as 10-20 um) without losing information at the global scale (scale of the entire chip). Experiments using pairs of fluids, such as oil and CO2, are conducted and flow instabilities are characterized at the scale of the chip and at the scale of the pores, simultaneously.” – Dr. Saman Aryana

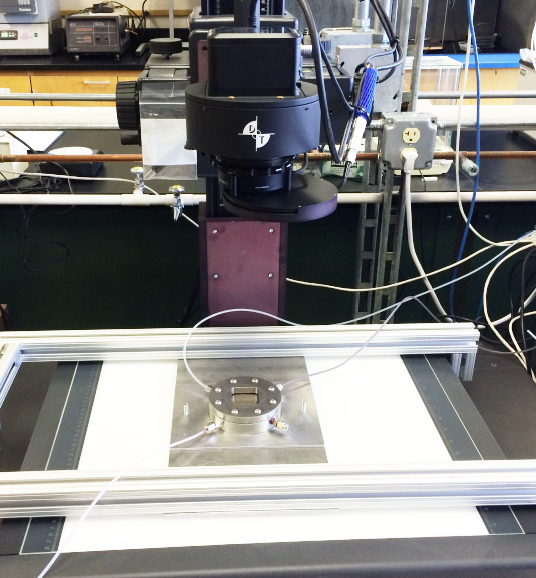

We configured Dr Aryana’s system based on our 60mp monochromatic digital back which is sensitive from near ultraviolet to mid infrared. Working with his team, we helped to select three optical filters that would help to isolate n-decane, supercritical CO2, and water based on their spectral transmission and reflectivity.
Saman Aryana – U of Wyoming
Saman Aryana – U of Wyoming
Fossil, Mineral and Petroleum Exploration
Situ Research and Princeton University Geologist Adam Maloof used the DT RCam Reprographic Camera at the heart of the Grinding, Imaging and Reconstruction Instrument (GIRI). This device creates a high definition 3D map of a rock sample by grinding away one layer at a time, and imaging the rock at each layer. “In order to record these cross sections, Situ integrated a DT RCam – a medium format 80 megapixel camera – directly onto a CNC precision grinding machine. This ultra-high resolution reprographic camera, equipped with vibration reducing leaf lens technology, is normally used to archive precious library collections, and in this case allows GIRI to image serial sections in 48 bit color with detail as fine as 5 microns.” – SituResearch.com

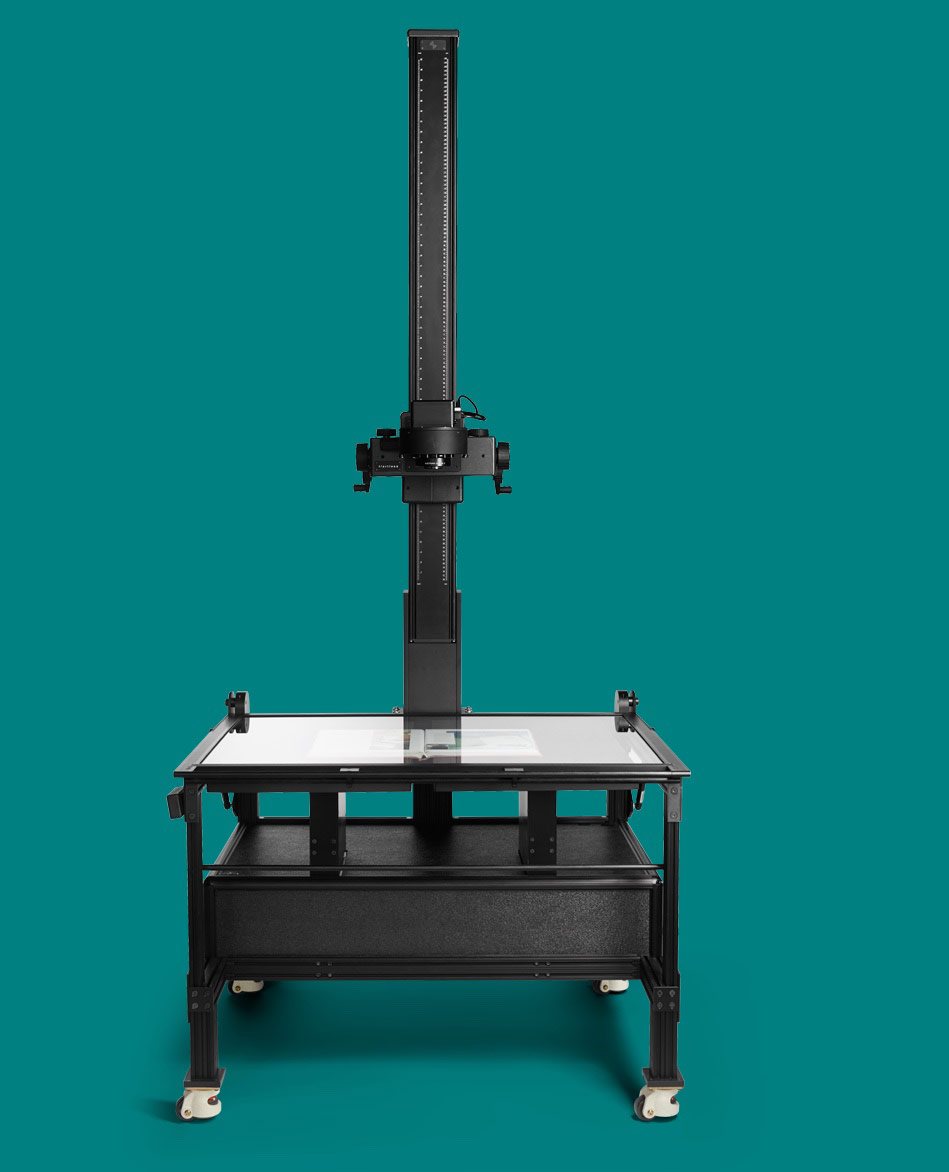

DT RGC180 Capture Cradle
The DT RGC180 is a multi-role copy stand that allows the digitization of many different types of material sizes. From books (using the glass top platen), film (partnered with DT FSK), loose manuscripts and flat art. The DT RGC180 is a fast and versatile digitizing machine that is a great compliment to any institutions preservation needs.
DT RG3040 Reprographic System
Legacy copy stands were designed to meet the relatively loose precision required for film capture. The DT RG3040 Reprographic System was built from the ground up for the era of digital capture.
The DT RCam is a versatile reproduction camera designed to work with a wide variety of digital backs to make certain you can utilize the best back for each particular project. Many other reprographic cameras are difficult to align and keep aligned, hard to set up, and are limited by the lenses, shutter systems, software, and digital backs they support.
