THE DT FILM SCANNING KIT

At over 400 times faster than legacy scanning equipment, the DT Film Scanning Kit (FSK) delivers high-speed, FADGI-4 Star compliant scanning of film at incredible resolution.



Helping reduce both your scanning and post-production time.

Scroll down to learn more or jump to a section: Overview   Features & Specs   Product Images   Videos   Request more info

Capture any material

Our main carriers are made of Steel and provides an economical solution, especially for film formats an institution does not have significant quantities of in their collections. They use a magnetic mask to hold the film in place. The magnetic masks are user-replaceable and replacements are available as a purchasable service item.
Carriers Available:
– 35mm Strip Film Carrier
– 120mm Strip Film Carrier
– 4x5 Sheet Film Carrier
– 9x12cm Sheet Film Carrier
– 8x10 Sheet Film Carrier



We make all of our copy stand & cameras here in the USA out of the strongest and lightest Aircraft grade aluminum.

Designed for Rapid Capture

The DT Film Scanning Kit (FSK) is fast. Capturing, loading and post processing is over 400 times faster than legacy scanning equipment.
– The DT FSK scans at up to 7000ppi with FADGI 4-star compliance.
– Capture speed is less than one second for any film size.



Specialized Optics for Film Scanning

Film digitization presents a unique challenge to the optical design of lenses. In order to achieve preservation grade image quality (FADGI 4-Star and Metamorfoze) the lens must be capable of achieving exceptional sharpness across the entire frame, and perform well at high magnification.
After extensive testing we selected the Schneider 120mm ASPH lens for small formats such as 35mm and 120mm film and the Schneider 72mm lens, which is included in our standard DT RCam Reprographic Camera used for larger formats such as 4×5 and 8×10.


Conservation Handling

The FSK supports contact-free scanning, with the image area entirely untouched. It puts the operator in control, rather than any automatic machine feed mechanism, so that materials can be handled safely at all times.

Features & Benefits

– Over 400 times faster than existing scanning equipment

– The highest image quality available

– Image quality meets and exceeds FADGI 4-Star and Metamorfoze imaging standards

– Digitizes 35mm up to 11” x 17” film

– Includes 120mm Schneider Digitar Aspheric SES Lens

– Includes all the necessary film carriers

– Integrates with DT RGC180 Capture Cradle & DT RG3040 Reprographic System

– Optimized workflow with Capture One CH 8

– Easy to operate

– Extremely durable for years of continuous use

– Ensures preservation object handling

What’s Included

– 120ASPH lens with SES shutter, in RCam lens board

DT RCam 20mm Extension Tube

DT RCam 40mm Extension Tube

– DT Stage (which comes with both standard and extended legs)

– DT Advanced 35mm Slide Film Carrier

– DT Basic 35mm Strip Film Carrier

– DT Basic 120mm Strip Film Carrier

– DT Basic 4x5 Sheet Film Carrier

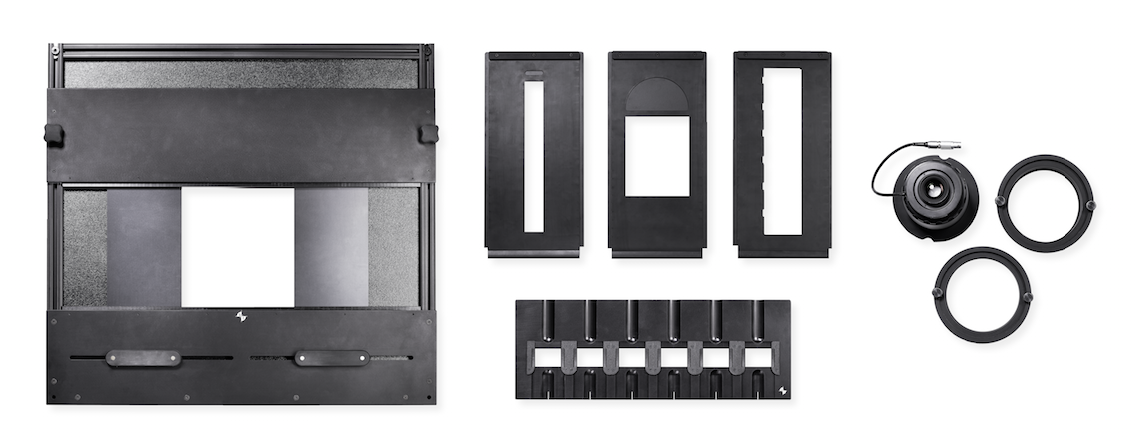

Components of the DT Film Scanning Kit (DT FSK)



MADE IN AMERICA

We make all of our copy stand & cameras here in the USA
out of the strongest and lightest Aircraft grade aluminum.

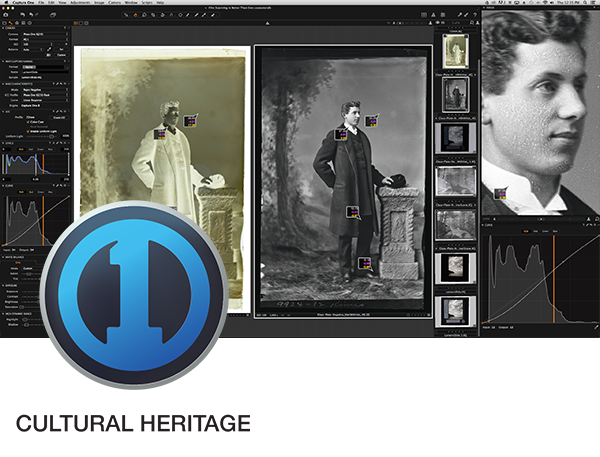

Optimized for Capture One CH

Combine the new FSK with Capture One CH software to achieve the ultimate film scanning workflow. Capture One CH includes several tools specific to film scanning along with a multitude of others suited for book and fine art reproduction. Learn More about Capture One CH.


Product Images



Videos

DT FSK Features Video

DT FSK Overset Video


Click below to download the DTDCH Product Overview

Click below to download the Phase One Solutions Guide

Learn more or schedule a demo with the DT Film Scanning Kit
