One Robust System

The Phase One iXG Camera System: A purpose built camera system designed for use in Cultural Heritage production environments and other industrial application. This system is rugged, built to last and made for serious high production needs where DSLR’s just will not cut it.

With an all in one integrated design, the iXG can handle any situation or need while providing the operator with almost full software control over every feature.


Color Accuracy & Superior Detail

The iXG Camera System uses CMOS sensors in both the iXG 100MP and iXG 50MP models to ensure the highest resolution and lowest noise levels. These sensors produce the most accurate colors and minute details, enabling accurate reproduction for any cultural heritage applications. The degree of detail, quality and accuracy of color is crucial for the accurate reproduction of rare books, artworks, documents and more.

The iXG 100MP Achromatic model uses the all new 100MP Achromatic sensor, combining the highest possible resolution and class-leading wide spectrum sensitivity that are needed for specialized applications such as multi-spectral and NIR (Near Infra-Red) imaging.


Capture One CH Software Integration

Full integration of the iXG with Capture One Cultural Heritage software gives the operator an efficient professional workflow and with more precise results. Initially the iXG provides remote operation of focus with symmetrical up/down response even when pointed straight down on a copy stand, as well as ultra-accurate one-click contrast-based autofocus. Shutter control is integrated directly into Capture One CH. We have very exciting plans for additional integration that will radically simplify the copy stand digitization workflow; check back soon for more details, or talk to your DTDCH sales person.




Schneider Kreuznach Optics

The iXG Camera utilizes integrated Flat Field Optics with the 72mm and 120mm Schneider Kreuznach lenses. This compatibility addresses the needs of flat copy work, particularly useful for libraries, archives, and universities, for example. The Schneider Kreuznach lens design in combination with the digital lens perfection of Capture One CH, offers the highest quality in terms of resolution, flatness, sharpness, distortion and color required for the most demanding reproduction applications.

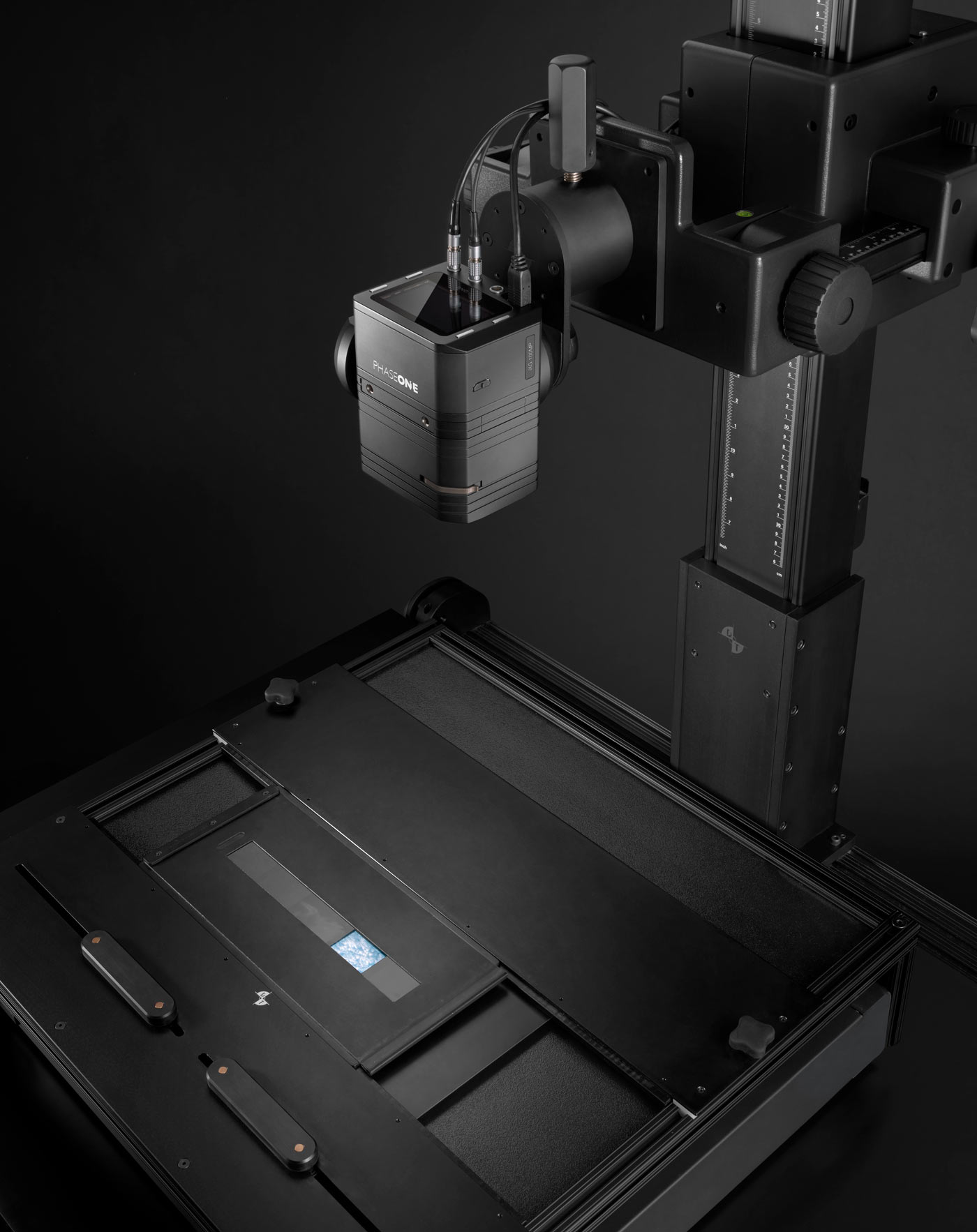

The iXG on a DTDCH copy stand capturing 35mm color film.


Scientific Tools

The iXG Camera System is designed to be an open platform for new accessories needed for imaging applications by both existing and new customer segments. For example, with the addition of accessory lighting and filtering, the wide spectrum, infrared, and multi-spectral capabilities of the iXG meet the highest standards required. These iXG capabilities also open the door to sequential imaging and computational imaging, required for both multi-spectral and 3D applications.


Precision Focus Control

With the iXG Camera System you get precise, accurate and smooth motor driven focusing. Position-recording of the lens and camera ensures optimum focus accuracy. Precision focus control with both manual and preset positioning, and contrast-based autofocus sets distance and resolution parameters accurately and reliably. This paves the way for automated setting up of camera position and focus for a specific job in terms of document size and capture resolution.


Support from DT

With offices in New York and LA, and a team of 17 professionals located in five states we are devoted to providing top quality service to our customers. We have been a partner with Phase One since our opening day more than 13 years ago and have had a global partnership starting in 2013 to bring DTDCH Cultural Heritage digitization equipment to the world. Digital Transitions at large has also been the #1 source for Phase One digital backs, bodies and lenses in the US and was awarded Support Partner of the Year in 2015.

Ready to take the next step?

Please contact us for pricing, in person / virtual demonstrations, or just to learn more about this fantastic new product.


Fields marked with an * are required

iXG Camera System Technical Specs

Imaging sensor options

iXG 50MP, iXG 100MP and iXG 100MP Achromatic

Lens mount

Phase One iXG

Shutter type

Leaf shutter, integrated in lens (RS shutter)

Shutter speed

1/250s – 30s

Focus positions

Close range to near infinity, 23 mm max. extension

Focus control

Motorized & encoded, controlled rom software

Mechanical mounts

Threaded holes at top & bottom with a dedicated L-Bracket

Triggering options

Hand release, host capture from software

Flash Output

Via Secured LEMO connector

Live View / HDMI*

1920x1080 25p/30p, 1280 x 720 50p/60p

Data Storage

USB 3.0 Tethered to Capture One CH

Dimensions (mm)

Focused to infinity: 150 x 120 x 100

Focused to close range: 180 x 120 x 100

Weight (lb)

5 lbs (Including 72 mm lens and mounting bracket)

Operational temp range (F)

50 – 95

Humidity (%)

15 – 80

iXG Camera System Product Images
